Φ16mm管比色,浓度直读;
独立单光路无干涉系统,精度高,寿命长,更稳定;
具有智能数据分析曲线图表功能,数据分析一目了然;
内存99条曲线,其中90条常规曲线,9条拟合曲线;
用户可自行修订校准曲线,适应不同水样的要求;
冷光源、窄带干涉、光源寿命长;

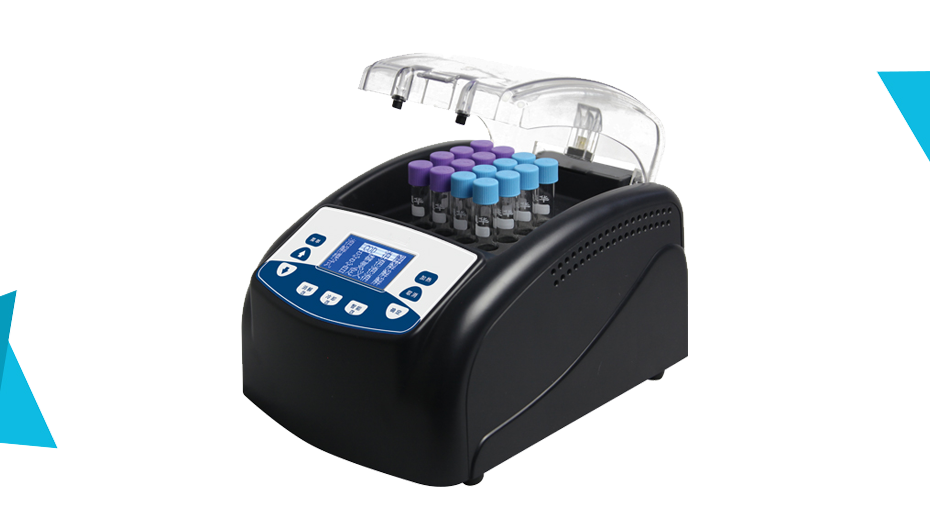

配套消解仪参数一览表

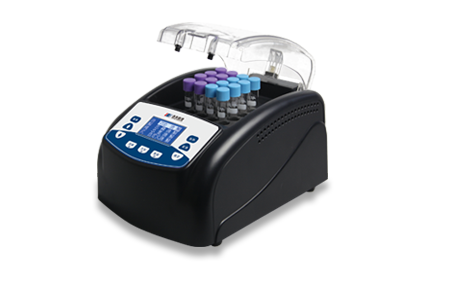

仪器名称 | 智能消解仪 | 仪器型号 | 5B-1(V8) |
控温范围 | 45-190℃ | 批处理样 | 16支 |
消解温度 | 122℃ | 消解时间 | 40分钟 |
消解温度示值误差 | ≤±2℃ | 定时范围 | 1分钟-96小时 |
定时开关 | 3个 | 供电方式 | AC220V±10% / 50Hz |

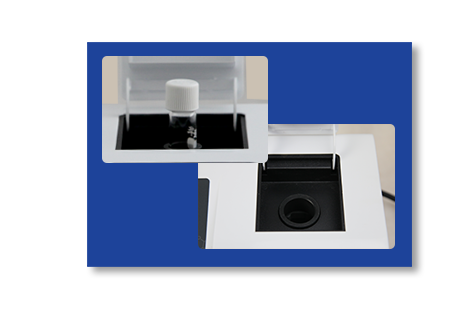

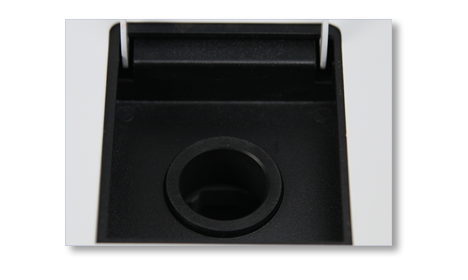

φ16mm管比色,浓度直读;
Phi 16mm tube colorimetric, concentration direct reading;

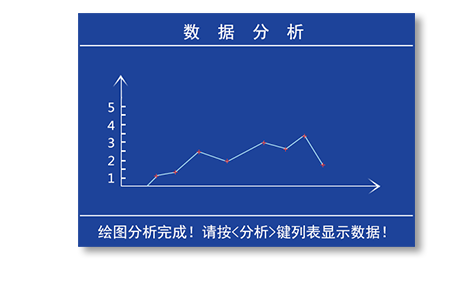

具有智能数据分析曲线图标功能,数据分析一目了然;
With intelligent data analysis curve icon function, data analysis at a glance;

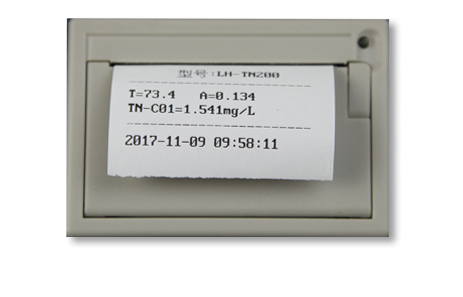

配备打印机,可打印当前数据及存储的历史数据;
With printer function, it can print the historical data and stored data;

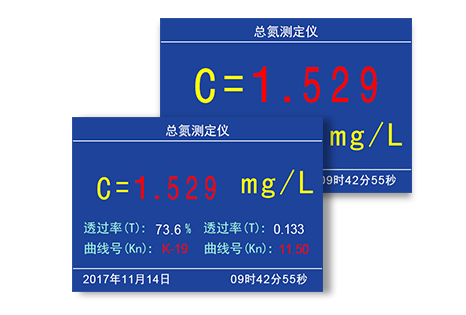

大、小字体显示模式自由切换,显示数据更清晰,参数更详细;
Large and small font display mode free switching, display data clearer, more detailed parameters;

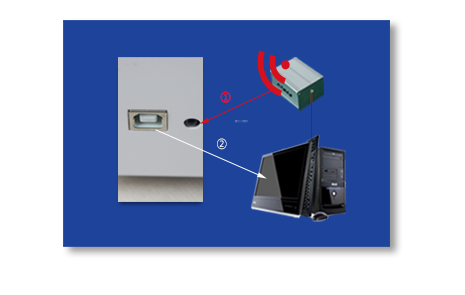

配备USB接口和红外传输功能,可向计算机传输存储的历史数据;
Equipped with USB interface and infrared transmission function to transmit historical data to the computer;

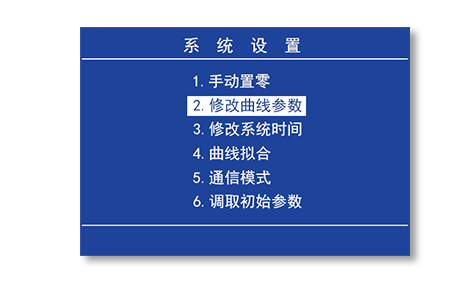

用户可自行修订校准曲线,适应不同水样的要求;
The user can revise the calibration curve by itself to meet the requirements of different water samples;
独立单光路无干涉系统,精度高,寿命长,更稳定;
Independent single path interference free system, high precision, long service life, more stable;

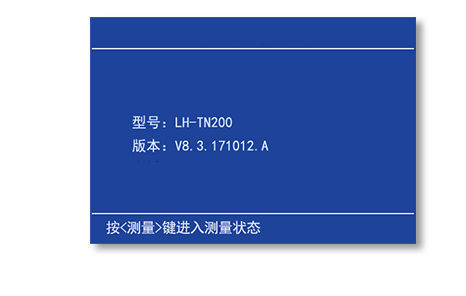

高清晰度彩色液晶显示屏,人性化操作提示,使用更简单;
High-definition color LCD display, user-friendly operation tips, the use of more simple;
消解功率随负载数量自动调整,实现智能恒温控制,具有延时保护功能;
The elimination power automatically adjusts with the amount of the load, realizes the intelligent constant temperature control, and has the delay protection function;

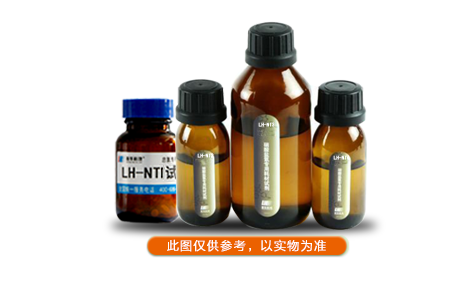

配备完善的专业耗材试剂,测量更加准确、方便、快捷;
Equipped with a perfect professional consumable reagent, the measurement is more accurate, convenient and quick;
[测定范围] | 0.5-100mg/L(分段) |
[最低检出限] | 0.5mg/L |
[重 复 性] | ≤±5% |
[光源寿命] | 10万小时 |
[光学稳定] | ≤±0.005A/20min |
[比色方式] | Φ25mm管比色 |
[存储数据] | 1.2万个 |
[曲线数量] | 99条(90条常规曲线,9条拟合曲线) |
[通讯接口] | USB接口、红外(选配) |
[温度示值误差] | ΔV≤±10% |
[操作界面] | 全中文显示 |
[打印机] | 热敏行式打印机 |
[环境温度] | (5-40)℃ |
[环境湿度] | 相对湿度≤85%RH(无冷凝) |
[额定电压] | AC220V±10% / 50Hz |
[额定功率] | 主机:20W 消解仪:600W |
[显示模式] | 3.5寸高清晰彩色液晶显示屏 |
[仪器尺寸] | 275*220*112 |

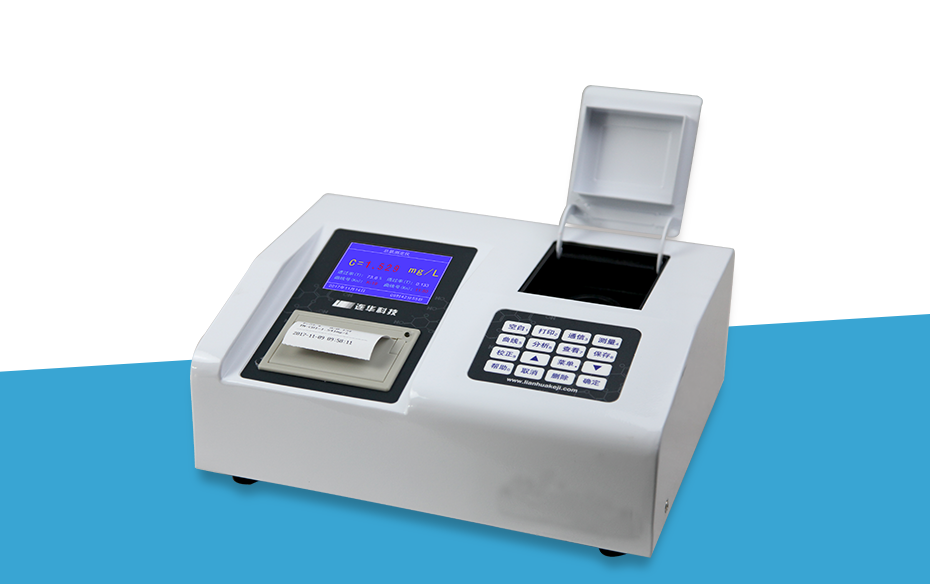

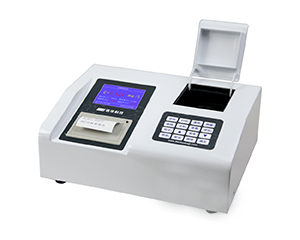

[产品型号] | LH-TN200 |
[产品名称] | 总氮测定仪 |
